Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the engine cover.

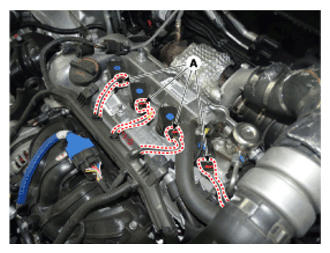

  3. Disconnect the ignition coil connector (A).
    G12608849Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ignition coil (A).
    G12608850Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12608851Courtesy of HYUNDAI MOTOR AMERICA
