Repair Procedures: Removal

[Bank 1 / Sensor 1]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

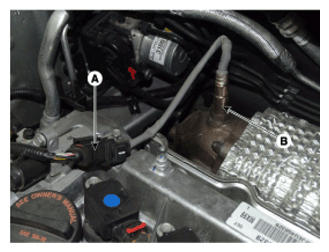

2. Disconnect the connector (A), and then remove the sensor (B).
   NOTE: Note that the SST (Part No.: 09392-1Y100) is useful when removing the heated oxygen sensor.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1 / Sensor 2]

1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

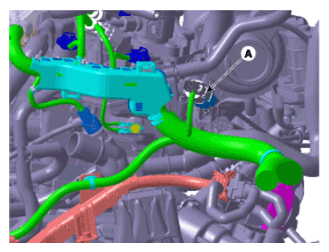

2. Disconnect the connector (A), and then remove the sensor (B).
