Repair Procedures: Removal

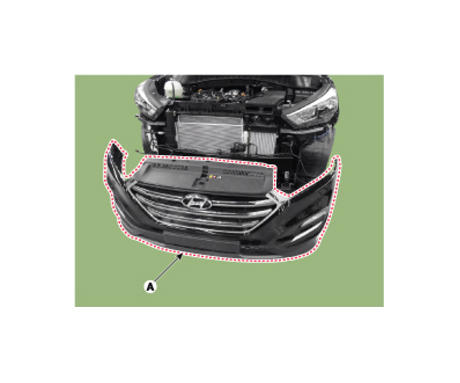

  1. Remove the front bumper cover (A).

    (Refer to Body - "FRONT BUMPER COVER ")

    G12614390Courtesy of HYUNDAI MOTOR AMERICA

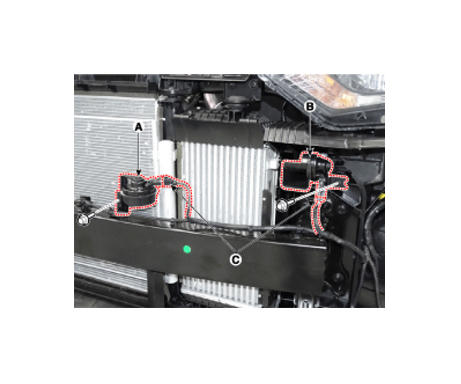

  2. After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.
    G12614391Courtesy of HYUNDAI MOTOR AMERICA
