Driver / Assist Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

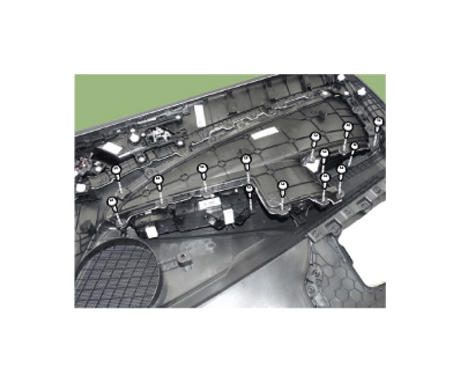

  3. Loosen the mounting screws.
    G12614782Courtesy of HYUNDAI MOTOR AMERICA

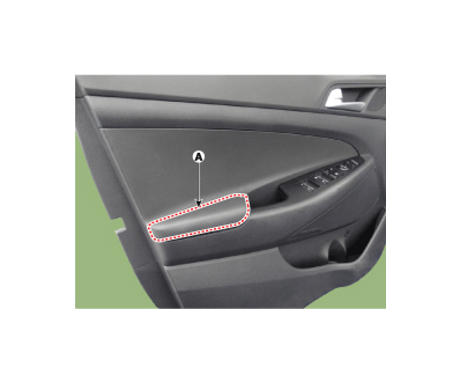

  4. Remove the door trim armrest (A).
    G12614783Courtesy of HYUNDAI MOTOR AMERICA

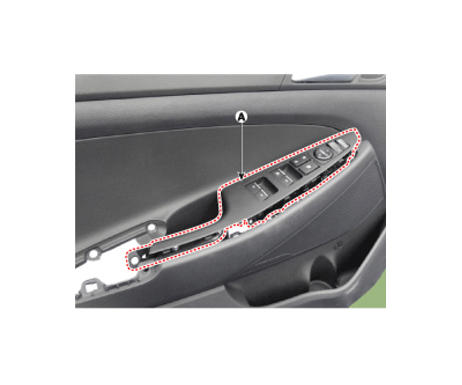

  5. Remove the power window switch assembly (A).
    G12614784Courtesy of HYUNDAI MOTOR AMERICA

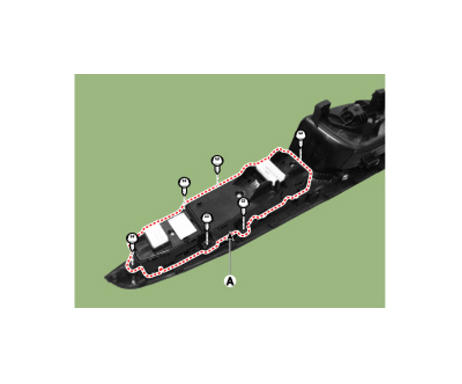

  6. Remove the power window switch (A) after loosening the mounting screws.
    G12614785Courtesy of HYUNDAI MOTOR AMERICA
