Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from the steering column.

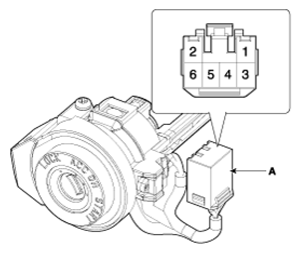

    G12610165Courtesy of HYUNDAI MOTOR AMERICA

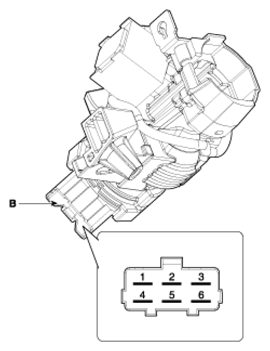

    G12610166Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

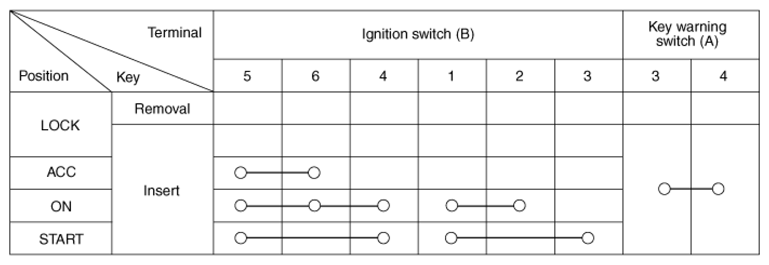

    G12610167Courtesy of HYUNDAI MOTOR AMERICA
