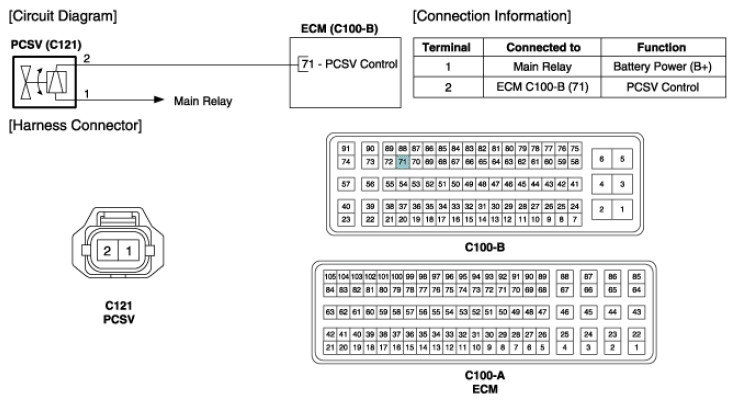

Home >> Hyundai >> 2018 >> Sonata Plug-In Hybrid >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Purge Control Solenoid Valve (PCSV) >> Schematic Diagrams >> Circuit Diagram
