Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then remove battery (-) cable.
  2. Remove the rear seat cushion.

    (Refer to "REAR SEAT ASSEMBLY ")

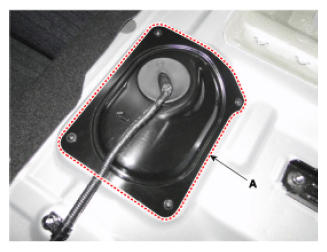

  3. Remove the fuel pump service cover (A).
    G12793305Courtesy of HYUNDAI MOTOR AMERICA

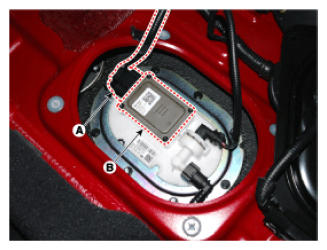

  4. Disconnect the fuel pump control module connector (A).
  5. Remove the fuel pressure control module (A) after removing the screws.
    G12793306Courtesy of HYUNDAI MOTOR AMERICA
