Repair Procedures: Removal

  1. Air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

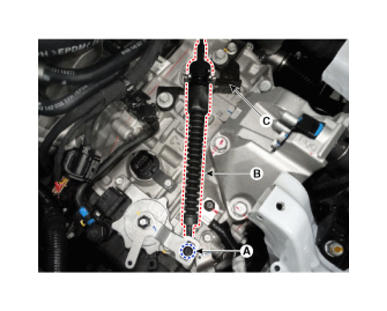

  3. Remove the nut (A) from the manual control lever.
  4. Remove the shift cable (B) from the bracket (C) at transaxle side.
    G12633716Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE (EXCEPT HEV) ")

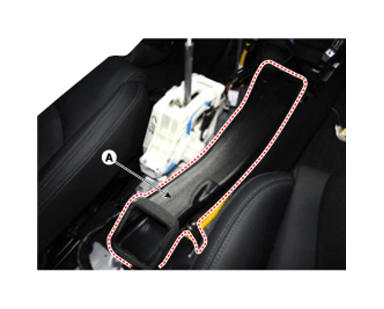

  6. Remove the air duct (A).
    G12633717Courtesy of HYUNDAI MOTOR AMERICA

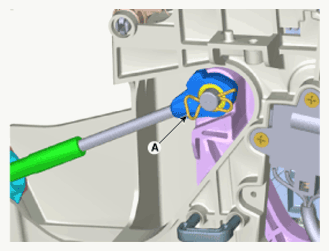

  7. Remove the snap pin (A).
    G12633718Courtesy of HYUNDAI MOTOR AMERICA

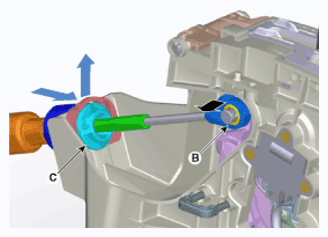

  8. Disconnect the cable eye end (B) from the shift lever.
  9. Disconnect the cable socket (C) from the shift lever.
    G12633719Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

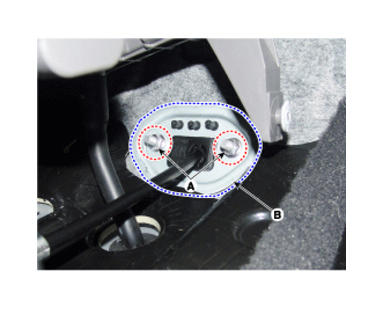

  11. Disconnect the shift cable retainer (B) after removing the mounting nut (A).
  12. Remove the shift cable by pulling it toward the interior.
    G12633720Courtesy of HYUNDAI MOTOR AMERICA
