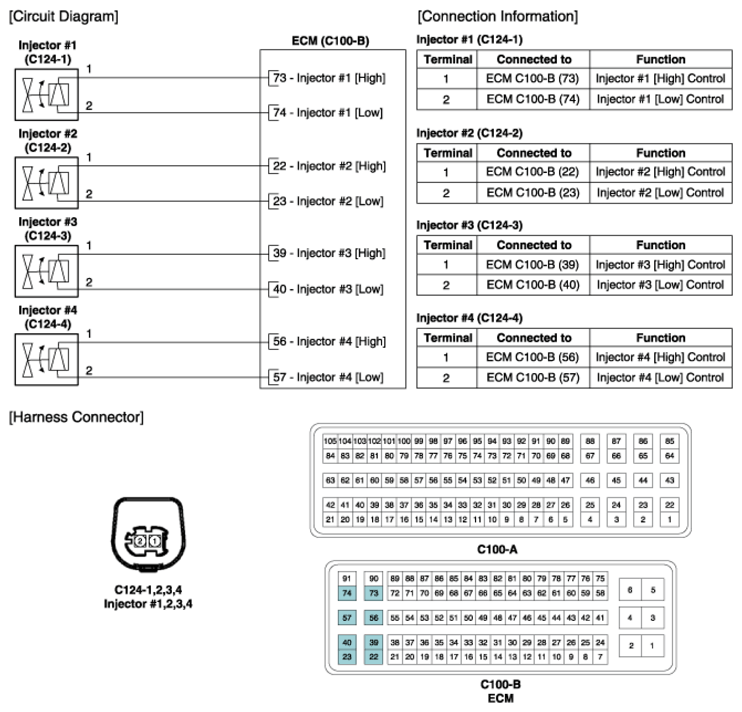

Home >> Hyundai >> 2018 >> Sonata Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L (Except HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram
