Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

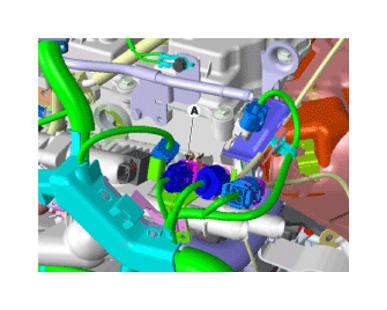

  2. Disconnect the crankshaft position sensor connector (A).
    G12633301Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the protector (A).
    G12633302Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the installation bolt (A), and then remove the crankshaft position sensor.
    G12633303Courtesy of HYUNDAI MOTOR AMERICA
