Repair Procedures: Removal

WARNING:
  • DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.

[Bank 1/Intake]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.
G12633307Courtesy of HYUNDAI MOTOR AMERICA

[Bank 1/Exhaust]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the hanger and the protector.
  4. Remove the installation bolt (B), and then remove the sensor.
G12633308Courtesy of HYUNDAI MOTOR AMERICA

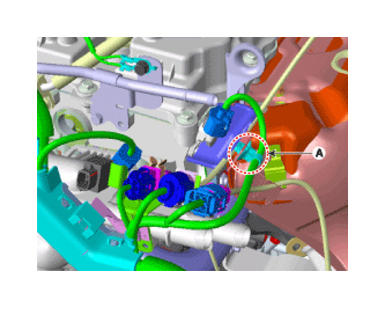

NOTE: When installing the sensor connector be sure to keep the wiring clip position (A).
G12633309Courtesy of HYUNDAI MOTOR AMERICA
