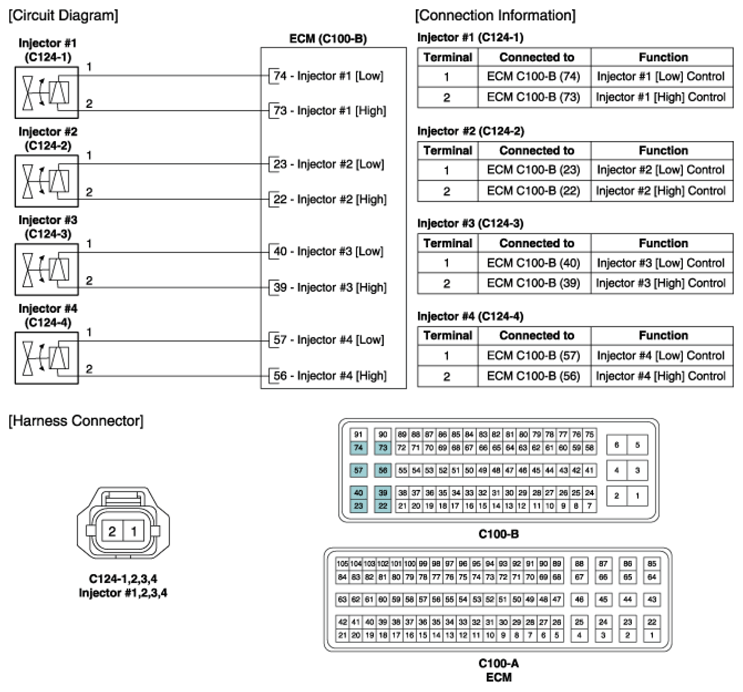

Home >> Hyundai >> 2018 >> Sonata Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram
