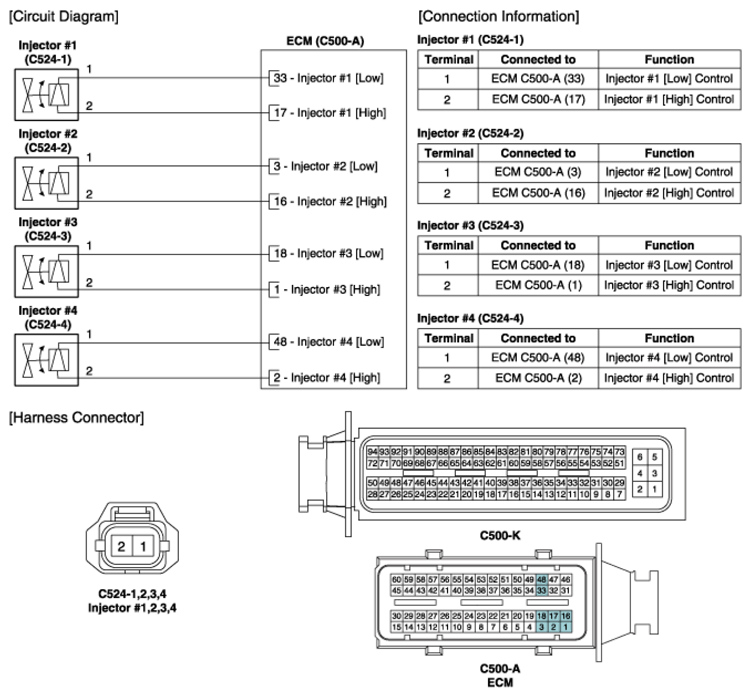

Home >> Hyundai >> 2018 >> Sonata Eco >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L (Except HEV) >> Injector >> Schematic Diagrams >> Circuit Diagram
