Home >> Hyundai >> 2018 >> Santa Fe XL Ultimate >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pump >> Components And Components Location >> Components

Components And Components Location: Components

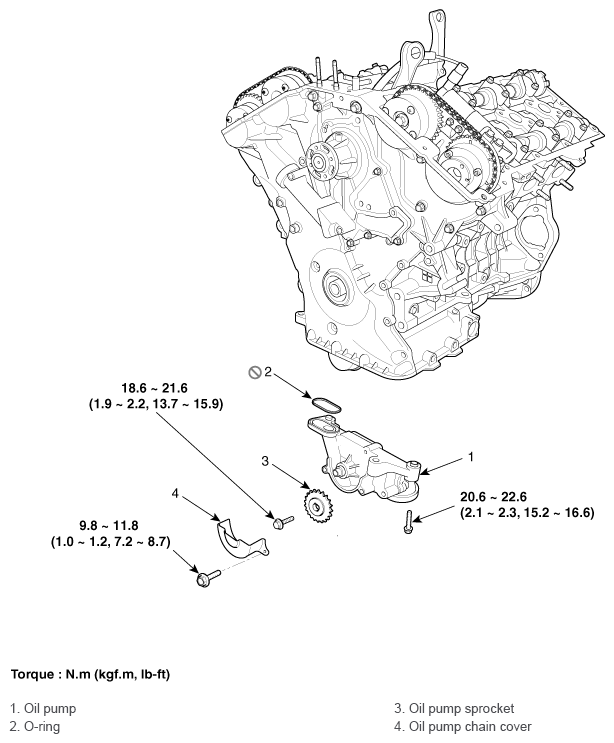

Fig 1: Oil Pump Components With Torque Specifications

G12033727

Courtesy of HYUNDAI MOTOR AMERICA
