Home >> Hyundai >> 2018 >> Santa Fe XL Ultimate >> Repair and Diagnosis >> Engine Mechanical >> Engine Lubrication System >> Oil Pan >> Components And Components Location >> Components

Components And Components Location: Components

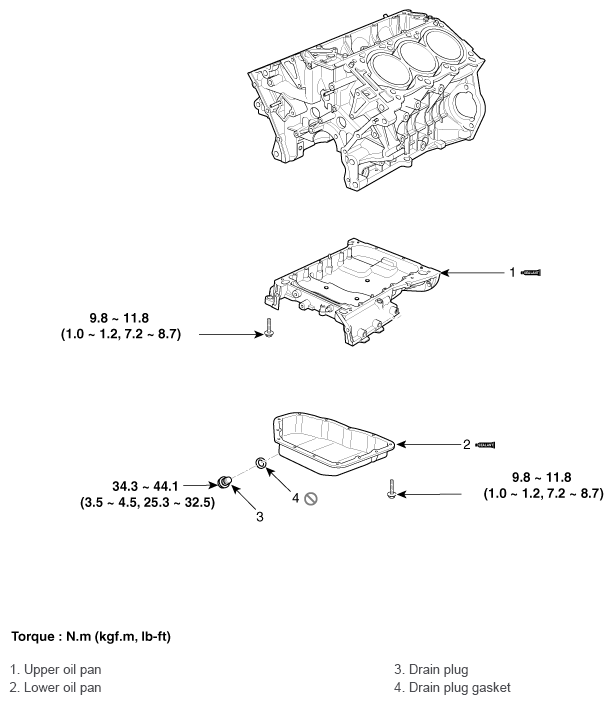

Fig 1: Oil Pan Components With Torque Specifications

G12033720

Courtesy of HYUNDAI MOTOR AMERICA
