Components and Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

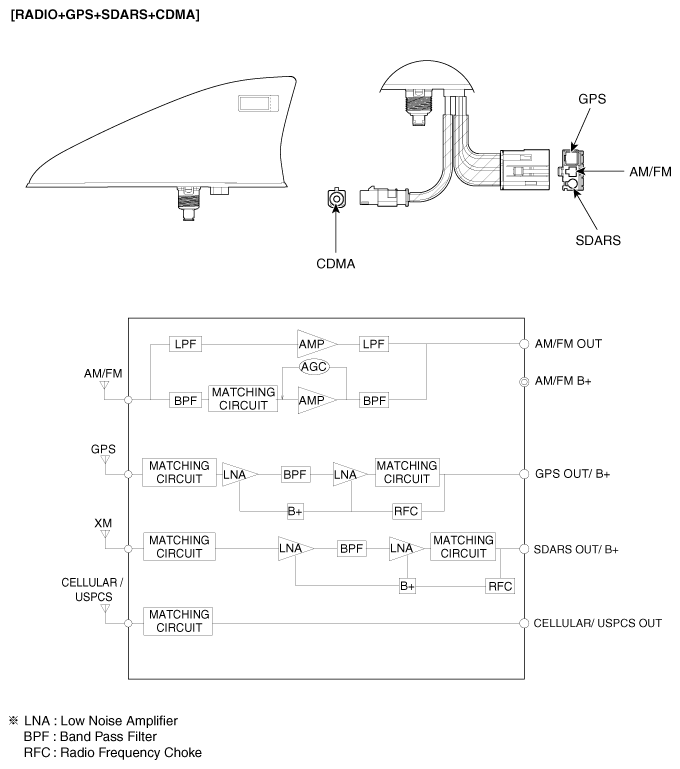

Fig 1: Roof Antenna Diagram (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

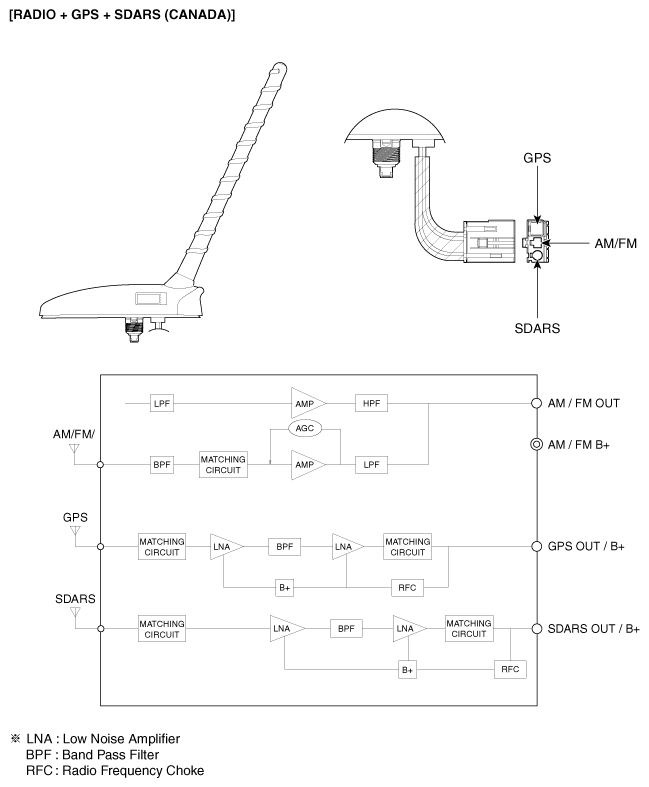

Fig 2: Roof Antenna Diagram (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
