Water Temperature Control Assembly

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery "-" terminal.
  2. Remove the engine under cover.
  3. Loosen the drain plug and drain the engine coolant.

    (Refer to "COOLANT ")

  4. Remove the air cleaner assembly.

    (Refer to "AIR CLEANER ")

  5. Disconnect the radiator upper hose (A) and lower hose (B).
    G12033696Courtesy of HYUNDAI MOTOR AMERICA
    NOTE: When installing radiator hoses, install as shown in illustrations.
    G12033697Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the WTS & gauge unit connector (A).
    G12033698Courtesy of HYUNDAI MOTOR AMERICA

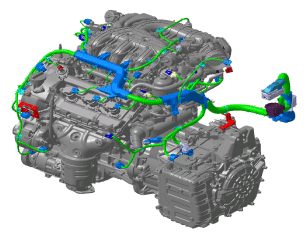

  7. Separate the engine wiring protector mounted on the water temperature control assembly.

    (Refer to COMPONENTS AND COMPONENTS LOCATION . )

    G12033699Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When installing, be sure to install the wiring protector mounting bolts of the original.
    If other bolts (longer or larger) has been installed, this can damage the water temperature control assembly and coolant may be leak.
  8. Disconnect the throttle body coolant hoses (A).
    G12033700Courtesy of HYUNDAI MOTOR AMERICA
  9. Disconnect the heater hoses (B).
    G12033701Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the water temperature control assembly (A).

    Tightening torque:

    19.6 ~ 23.5 N.m (2.0 ~ 2.4 kgf.m, 14.5 ~ 17.4 lb-ft)

    G12033702Courtesy of HYUNDAI MOTOR AMERICA
  11. Install in the reverse order of removal.
  12. Fill the radiator with coolant and check for leaks.

    (Refer to "COOLANT ")

    NOTE:
    • Refill engine coolant.
    • Refill radiator and reservoir tank with engine coolant.
    • Bleed air from the cooling system.
      • Start engine and let it run until it warms up. (Until the radiator fan operates 3 or 4 times.)
      • Turn Off the engine. Check the level in the radiator, add coolant if needed. This will allow trapped air to be removed from the cooling system.
      • Put radiator cap on tightly, then run the engine again and check for leaks.
    • Clean the battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent corrosion.
