Hyundai
>>
2018
>>
Santa Fe XL Base
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transaxle Hydraulic System
>>
Hydraulic System
>>
Components And Components Location
>>
Component Location
Component Location

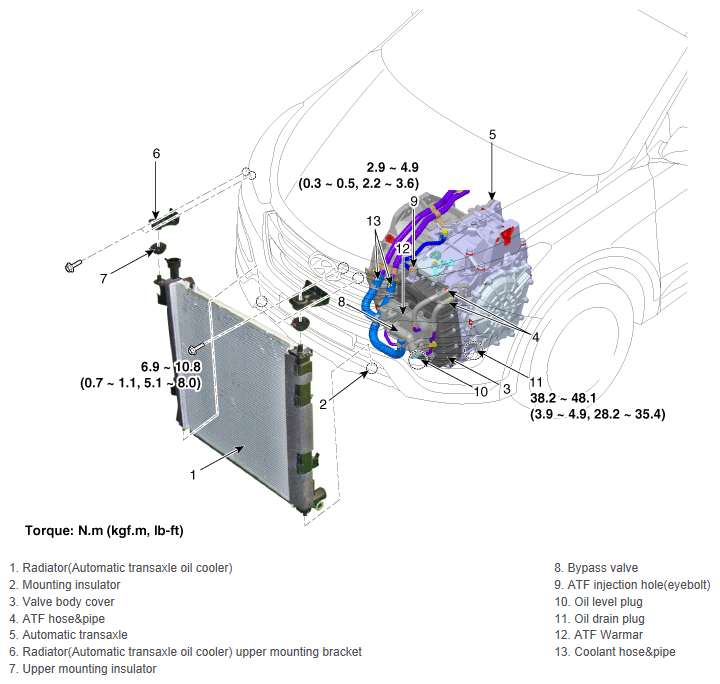

Fig 1: Hydraulic System Components With Torque Specifications (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Hydraulic System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

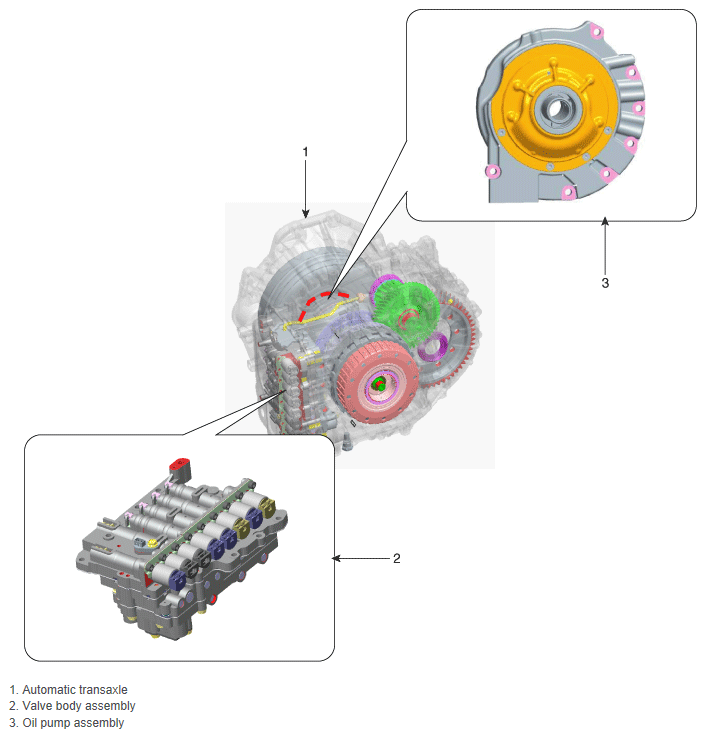

Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
