Components And Components Location: Components
WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

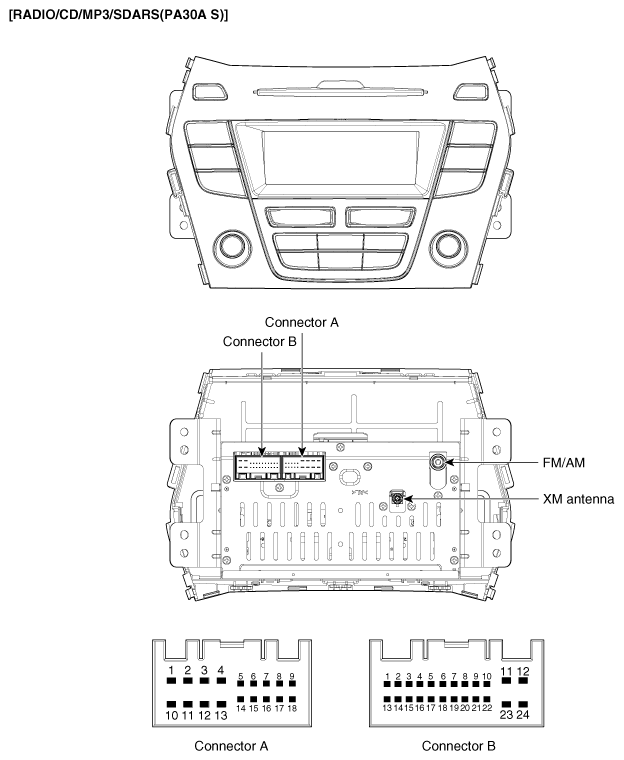

CONNECTOR PIN IDENTIFICATION
| No. | Connector A | Connector B |
|---|---|---|
| 1 | Rear left speaker (+) | CAN High |
| 2 | Front left speaker (+) | TMU Audio (+) (For USA) |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | Steering wheel remote |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB/iPod VDD |
| 8 | Illumination (+) | AUX R IN |
| 9 | Detent | AUX GND |
| 10 | Rear left speaker (-) | Mic (+) B/T |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | B+ |
| 13 | Rear right speaker (-) | CAN Low |
| 14 | - | TMU Audio (-) (For USA) |
| 15 | - | - |
| 16 | - | Speed |
| 17 | Illumination (-) | Remote GND |
| 18 | Remote antenna | USB D (-) |
| 19 | USB/iPod GND | |
| 20 | AUX DETECT | |
| 21 | AUX L IN | |
| 22 | Mic (-) B/T | |
| 23 | - | |
| 24 | Power GND |

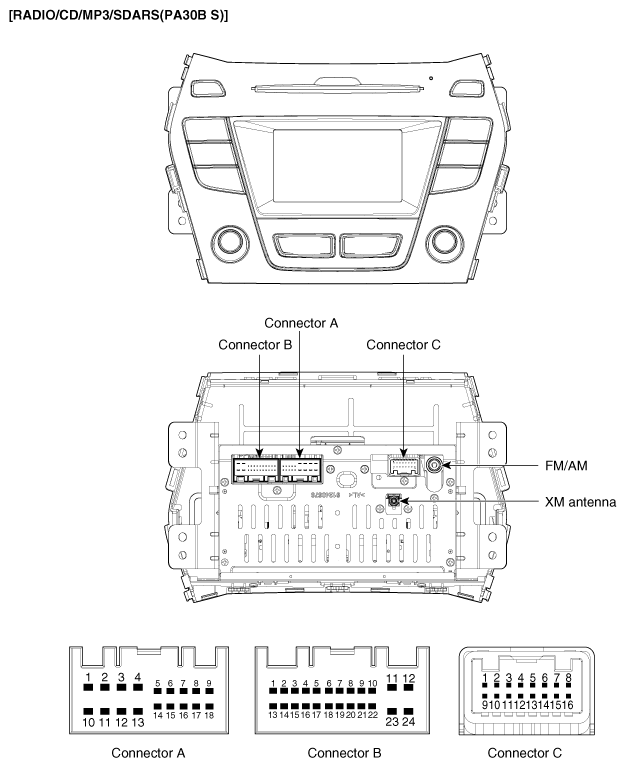

CONNECTOR PIN IDENTIFICATION
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | CAN High | - |
| 2 | Front left speaker (+) | TMU Audio (+) (For USA) | - |
| 3 | Front right speaker (+) | - | Camera ground |
| 4 | Rear right speaker (+) | Steering wheel remote | Camera video input |
| 5 | - | - | - |
| 6 | - | USB D (+) | - |
| 7 | - | USB/iPod VDD | - |
| 8 | Illumination (+) | AUX R IN | - |
| 9 | Detent | AUX GND | - |
| 10 | Rear left speaker (-) | Mic (+) B/T | Camera battery (+) |
| 11 | Front left speaker (-) | ACC | Power GND |
| 12 | Front right speaker (-) | B+ | R detector |
| 13 | Rear right speaker (-) | CAN Low | - |
| 14 | - | TMU Audio (-) (For USA) | - |
| 15 | - | - | - |
| 16 | - | Speed | - |
| 17 | Illumination (-) | Remote GND | |
| 18 | Remote antenna | USB D (-) | |
| 19 | USB/iPod GND | ||
| 20 | AUX DETECT | ||
| 21 | AUX L IN | ||
| 22 | Mic (-) B/T | ||
| 23 | - | ||
| 24 | Power GND |
