Component Location

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe XL and 2017 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

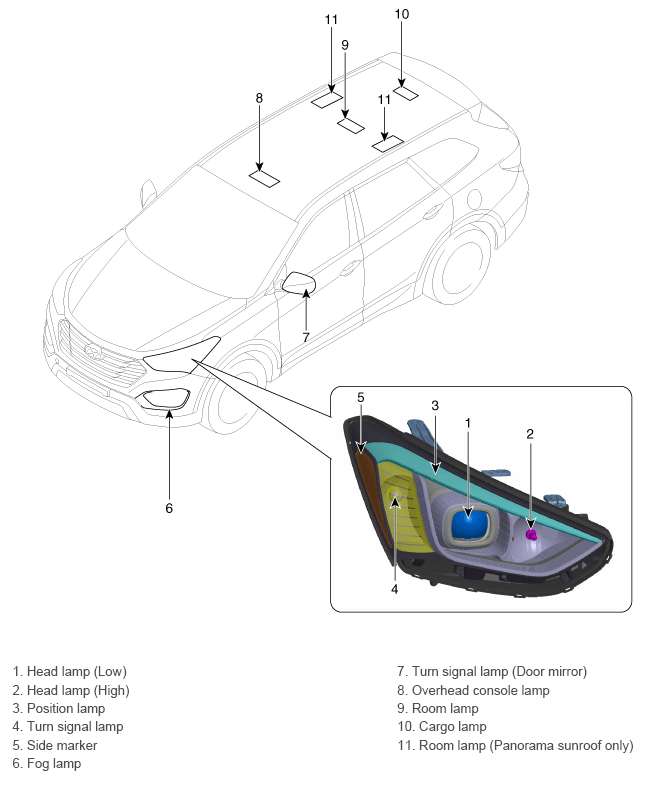

G12036326Courtesy of HYUNDAI MOTOR AMERICA

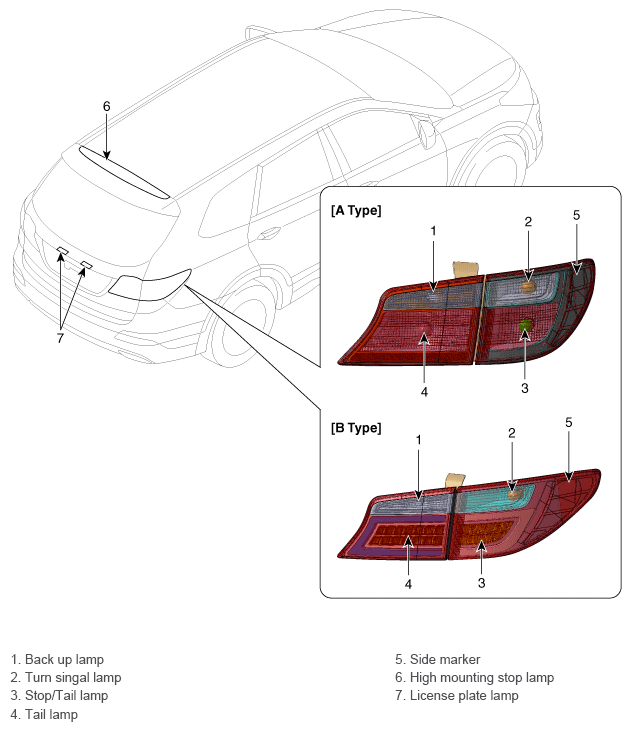

G12036327Courtesy of HYUNDAI MOTOR AMERICA
