Home >> Hyundai >> 2018 >> Santa Fe XL Base >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Water Pump >> Components And Components Location >> Components

Components And Components Location: Components

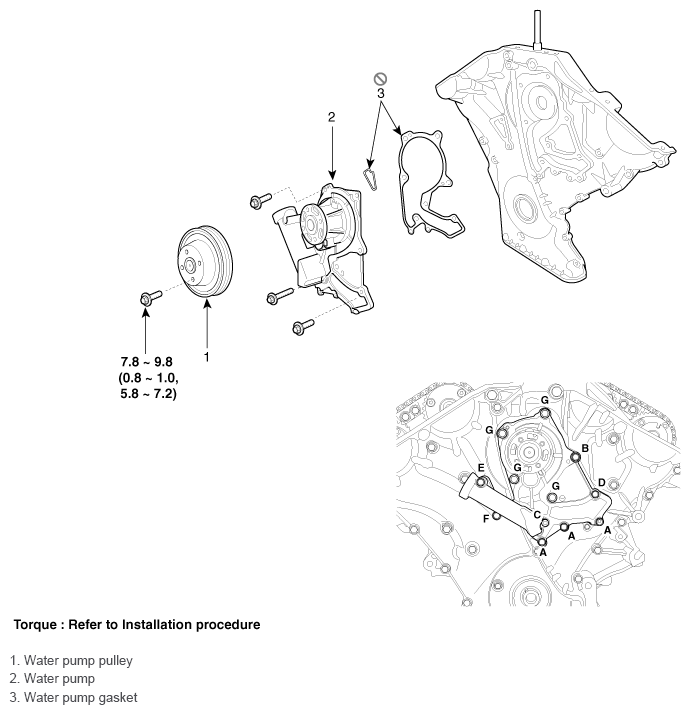

Fig 1: Water Pump Components With Torque Specifications

G12033704

Courtesy of HYUNDAI MOTOR AMERICA
