Components And Components Location: Components

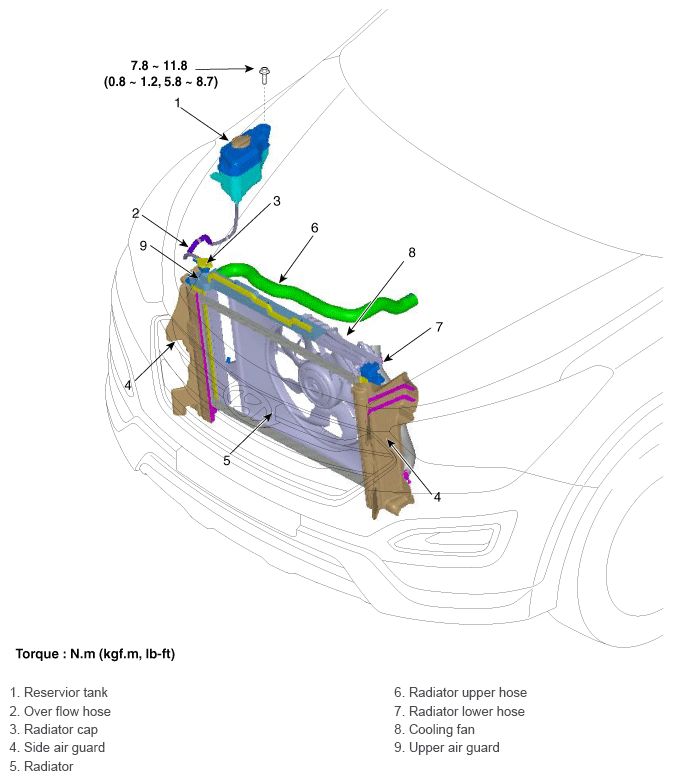

Fig 1: Cooling System Components With Torque Specifications (1 Of 2)
G12033663Courtesy of HYUNDAI MOTOR AMERICA

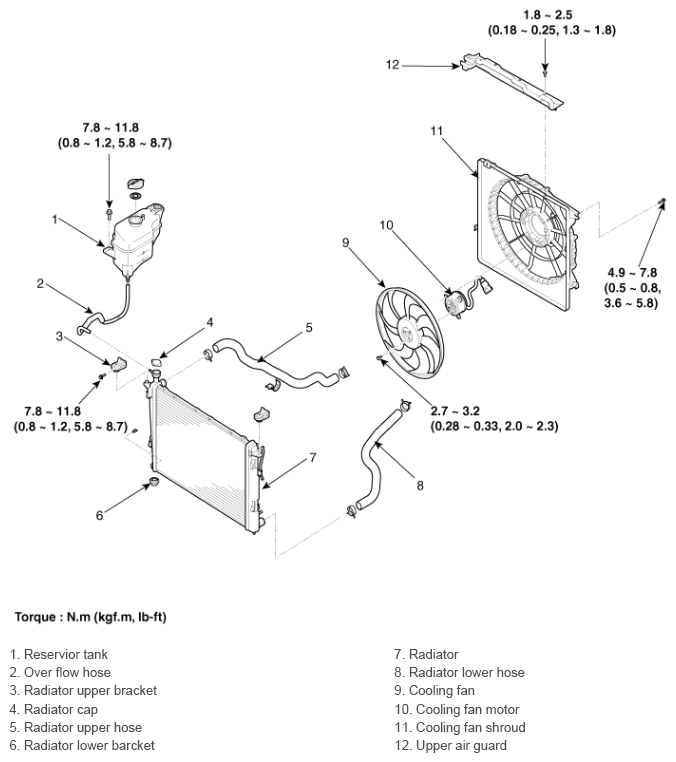

Fig 2: Cooling System Components With Torque Specifications (2 Of 2)
G12033664Courtesy of HYUNDAI MOTOR AMERICA
