BCM Diagnosis With GDS
- The body control module can diagnose by using the GDS more quickly.
The BCM communicates with the GDS and then reads the input/output value and drives the actuator.
- To diagnose the BCM function, select the menu of model and body control module.
- Select "Input/output monitoring", if you will check current data of body network system. It provides input/output status of each module.
- BCM service data, CLU service data, SJB service data

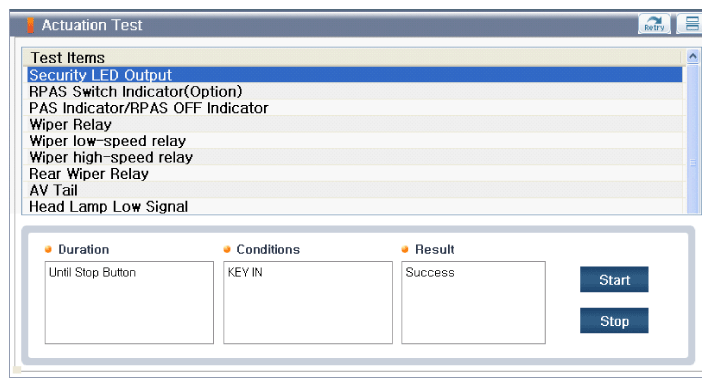

- If you will check each module data operation forcefully, select "Actuation test".

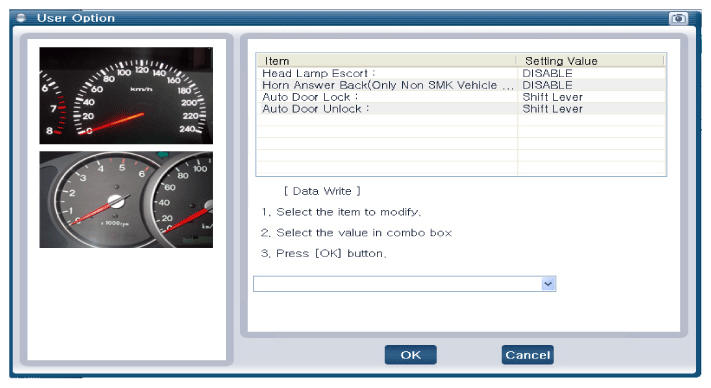

- If you want to change user option, select "user option".
