Repair and Diagnosis
>>
Body & Frame
>>
Exterior Body Panels
>>
Power Liftgate Module
>>
Components And Components Location
>>
Block Diagram
Block Diagram

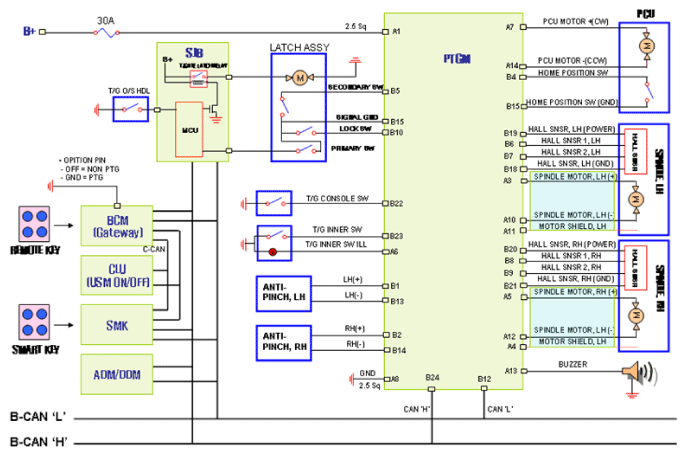

Fig 1: Power Liftgate Module Block Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Power Liftgate Module Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
