Santa Fe Sport 2.0T, FWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>
Circuit Diagram
>>
Assist Power Window Switch
Assist Power Window Switch

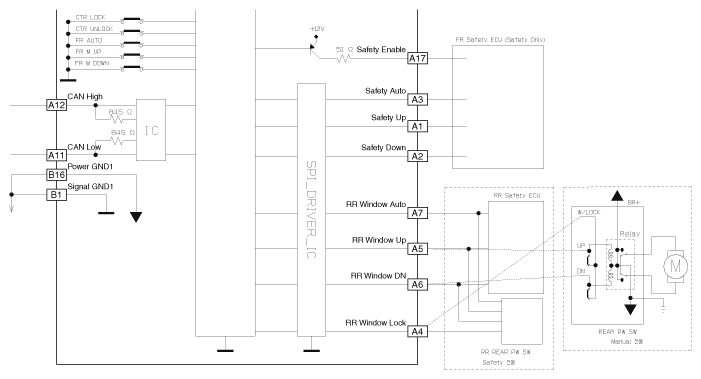

Fig 1: Assist Power Window Switch Circuit (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Assist Power Window Switch Circuit (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
