Home >> Hyundai >> 2018 >> Santa Fe Sport 2.0T, FWD >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Power Liftgate Module >> Description And Operation >> Operation >> Calibration Mode

Calibration Mode

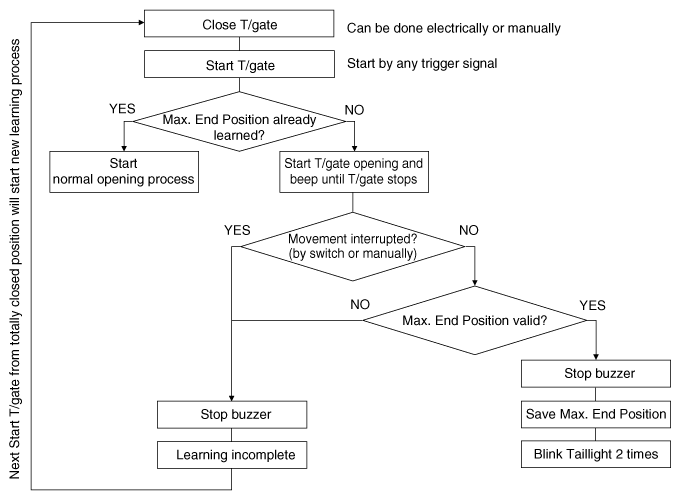

Fig 1: Tailgate Calibration Mode Flow Chart
G12054768Courtesy of HYUNDAI MOTOR AMERICA
