Component Location

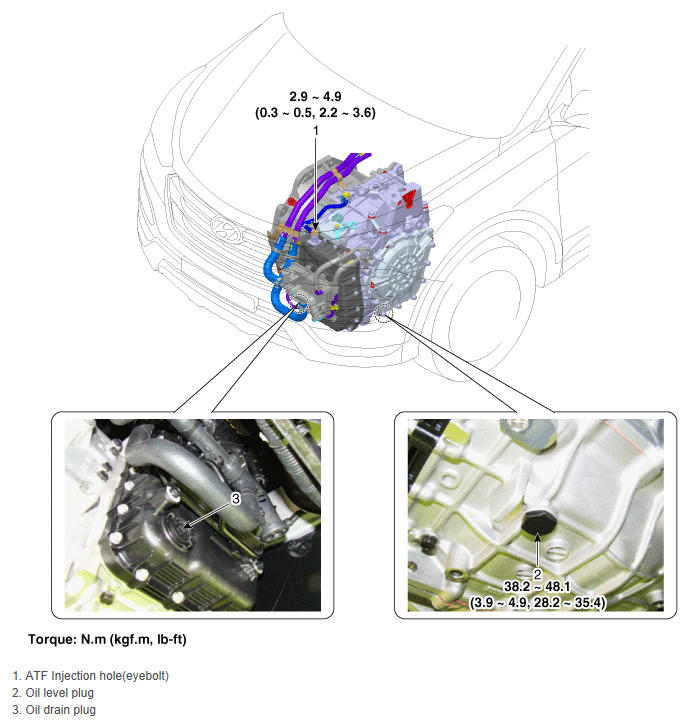

Fig 1: Fluid Components With Torque Specifications
G12034219Courtesy of HYUNDAI MOTOR AMERICA
