Repair Procedures: Removal

Remove the front wheel and tire (A) from front hub.
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)
NOTE:
- Be careful not to damage to the hub bolts when removing the front wheel and tire (A).
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the sprit pin and castle nut and then disconnect the tie-rod end (A) from the front knuckle.
Tightening torque:

23.5 ~ 33.3 N.m (2.4 ~ 3.4 kgf.m, 17.4 ~ 24.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt & nut and then remove the lower arm (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.
Tightening torque:

32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)
NOTE:
- Keep the neutral-range to prevent the damage of the clock spring inner cable when you handle the steering wheel.
- Do not use the bolt again.
Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
Remove the roll rod stopper bolt (A).
Tightening torque:

107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the muffler rubber hanger (A).

Courtesy of HYUNDAI MOTOR AMERICA

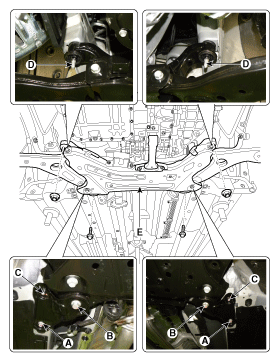

Loosen the bolts & nuts and then remove the sub frame.
Tightening torque

Bolts:
1. 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
2. 98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)
  Nuts:
3. 44.1 ~ 58.8 N.m (4.5 ~ 6.0 kgf.m, 32.5 ~ 43.4 lb-ft)
4. 156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

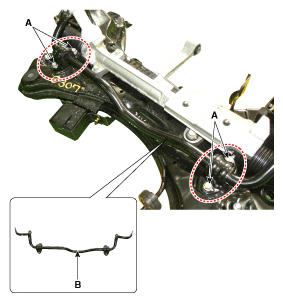

Loosen the bolt (A-4ea) and then remove the stabilizer bar (B) from the sub frame.
Tightening torque:

49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

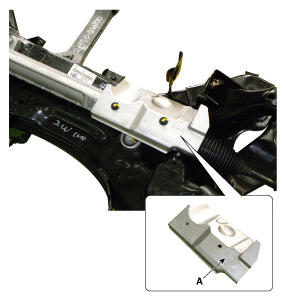

Loosen the bolt and then remove the protector (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

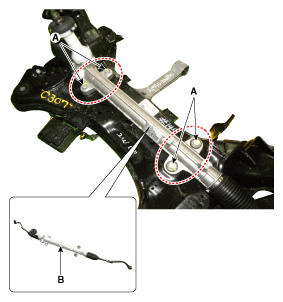

Remove the steering gearbox (B) from the cross member by loosening the mounting bolt (A-4ea).
Tightening torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the nut (A-2ea) and then remove the sub frame damper (B).
Tightening torque:

39.2 ~ 49.0 N.m (4.0 ~ 5.0 kgf.m, 28.9 ~ 36.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front lower arm.
(Refer to "FRONT LOWER ARM ")
