Components And Components Location: Components

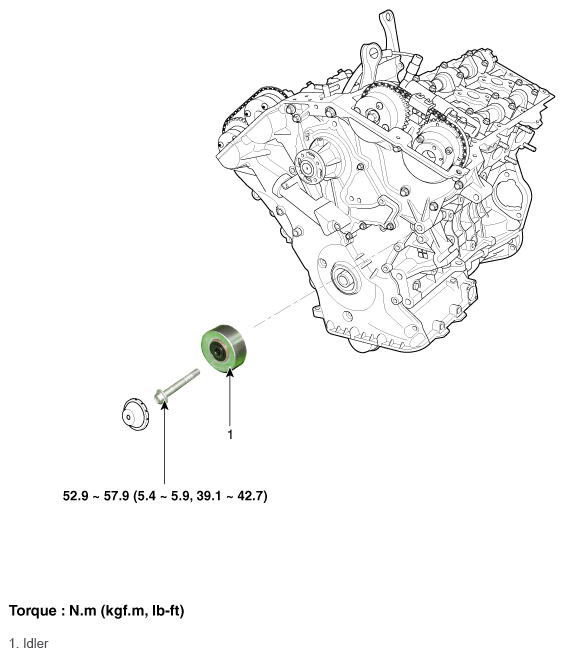

Fig 1: Idler Components With Torque Specifications

G12032710

Courtesy of HYUNDAI MOTOR AMERICA
