Components And Components Location: Components

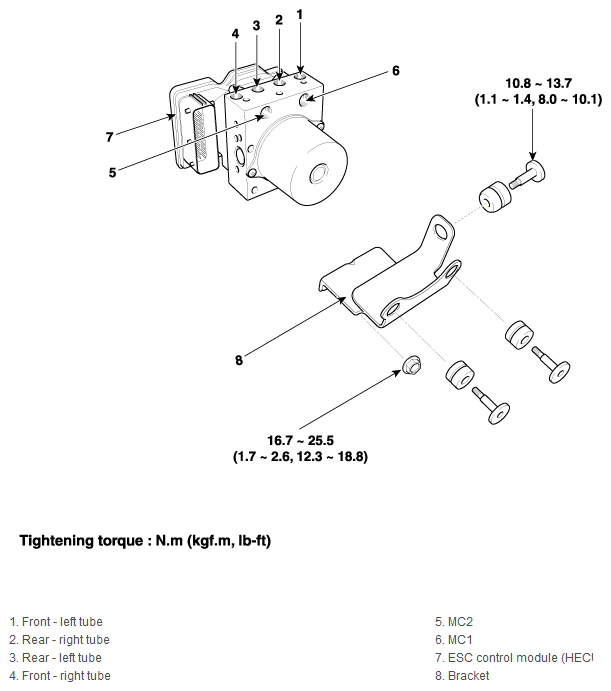

Fig 1: ESC Control Module Components With Torque Specifications

G12033341

Courtesy of HYUNDAI MOTOR AMERICA
