Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

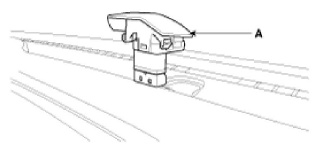

  2. Remove the photo & auto light sensor (A) from crash pad upper side by using screw (-) driver.
    G12036399Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the auto light connector.
