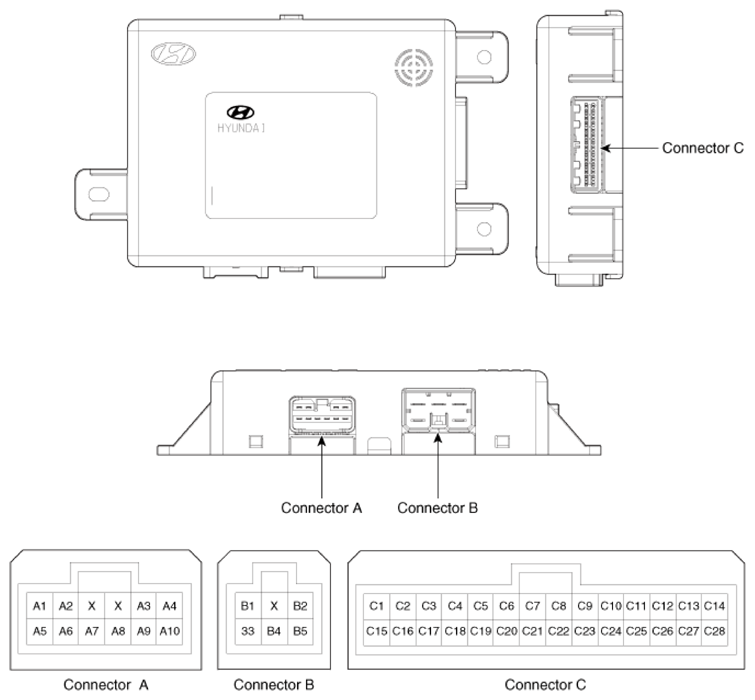

| 1 |
- |
Battery (+) |
Slide switch signal (Forward) |
| 2 |
Reclining motor (Forward) |
GND |
Reclining switch signal (Forward) |
| 3 |
Height motor (Up) |
Battery (+) |
Front tilt switch signal (Up) |
| 4 |
Slide motor (Forward) |
- |
Height switch signal (Up) |
| 5 |
- |
GND |
- |
| 6 |
Reclining motor (Backward) |
|
B-CAN (High) |
| 7 |
Tilt motor (Up) |
B-CAN (Low) |
| 8 |
Tilt motor (Down) |
IMS Switch 1 |
| 9 |
Height motor (Down) |
Recline limit switch (Forward) |
| 10 |
Slide motor (Backward) |
Slide sensor input |
| 11 |
|
Tilt sensor input |
| 12 |
- |
| 13 |
Position sensor (Power) |
| 14 |
IGN 1 |
| 15 |
Slide switch (Backward) |
| 16 |
Recline switch (Backward) |
| 17 |
Tilt switch (Down) |
| 18 |
Height switch (Down) |
| 19 |
- |
| 20 |
Ground |
| 21 |
SET Switch |
| 22 |
IMS Switch 2 |
| 23 |
Recline limit switch (Backward) |
| 24 |
Seat recline sensor |
| 25 |
Seat height sensor (input) |
| 26 |
- |
| 27 |
- |
| 28 |
Battery (+) |
