Repair Procedures: Installation

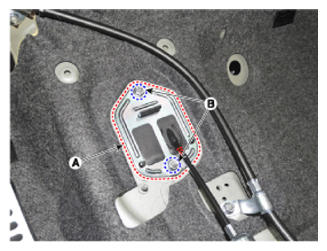

- Install the retainer (A) and then tighten the nut (B-2ea).
Tightening torque:
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)
NOTE:- Install the cable after placing the shift lever and the manual control lever in the N position.

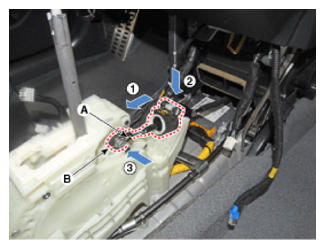

- Install the shift cable (B) and then fix the snap pin (A).CAUTION:

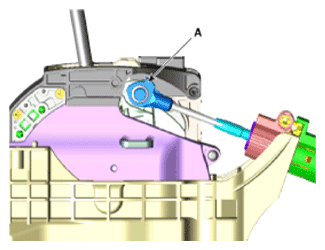

- When assembling shift cable, the projection (A) must face upwards.
- When assembling the snap pin, be careful about the correct direction.

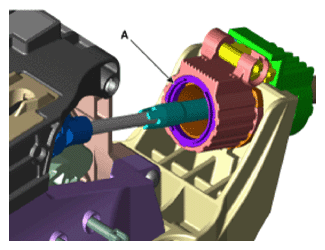

- The band portion (A) must point to the front of the vehicle.
- The band portion (A) must point outwards.

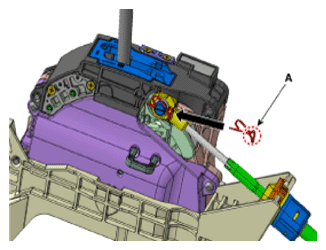

- After installing the shift cable socket, check portion (A) to see if it projects outwards from the cap.
- When assembling shift cable, the projection (A) must face upwards.

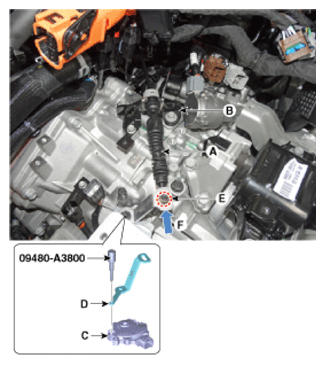

- Install the shift cable (A) in the cable bracket (B).
- Align the hole (C) in the manual control lever with the "N" position hole (D) of the inhibitor switch and then insert the inhibitor switch guide pin (SST No.: 09480-A3800).
- Lightly tighten the nut (E) after connected the shift cable (B) in the manual control lever.
- Tighten the nut (E) after Push shift cable (B) lightly to (F)'s direction shown to eliminate free play of shift cable.
Tightening torque:
9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
- Remove the inhibitor switch guide pin (SST No.: 09480-A3800) from the hole.
- Install the engine room under cover.
(Refer to "ENGINE ROOM UNDER COVER ")
- Install the HPCU (Hybrid Power Control Unit) tray.
(Refer to "INSTALLATION ")
- Install the ECM (Engine Control Module) and TCM (Transmission Control Module)
(Refer to "INSTALLATION ")
(Refer to "TCM ")
- Install the HPCU (Hybrid Power Control Unit).
(Refer to "INSTALLATION ")
- Bleed air from the hybrid motor cooling system using the GDS.
(Refer to "COOLANT ")
- Install the floor console assembly.
(Refer to "FLOOR CONSOLE ")
CAUTION:
- Check that operating surely at each range of the inhibitor switch corresponding to each position of shift lever.
