Components And Components Location: Components

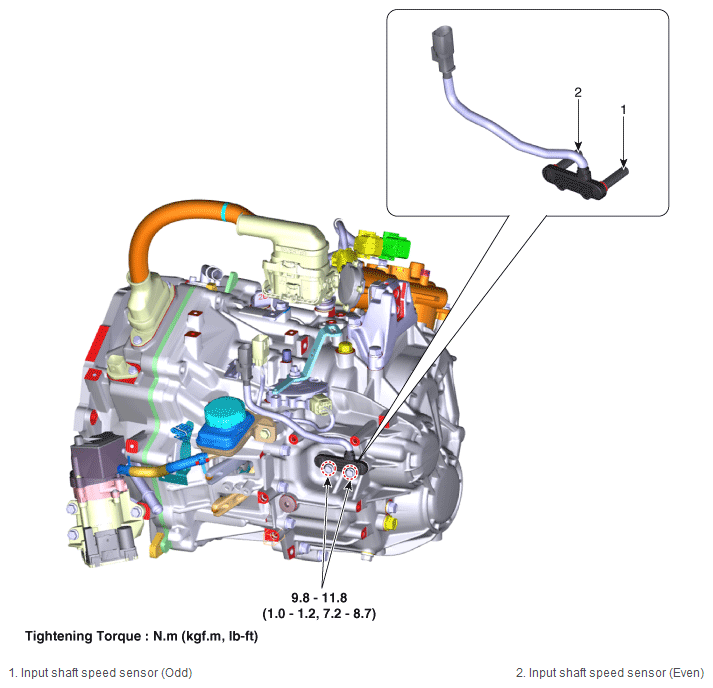

Fig 1: Input Shaft Speed Sensor 1 Components Location With Torque Specification

G12727489

Courtesy of HYUNDAI MOTOR AMERICA
