Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air cleaner assembly.
(Refer to "AIR CLEANER ")

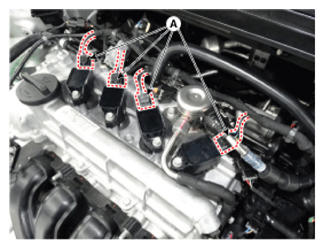

Disconnect the ignition coil connector (A).

G12725786

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

G12725787

Courtesy of HYUNDAI MOTOR AMERICA

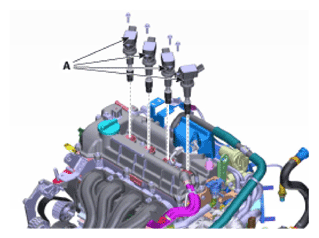

Remove the ignition coil (A).
Ignition coil installation bolts:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)

Courtesy of HYUNDAI MOTOR AMERICA
