Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

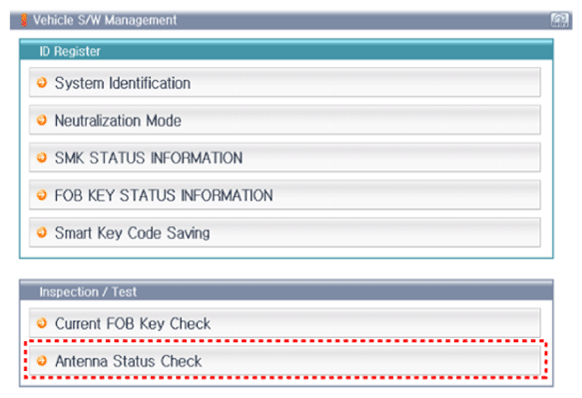

    G12730148Courtesy of HYUNDAI MOTOR AMERICA
  3. After IG ON, select the "Antenna Status Check".

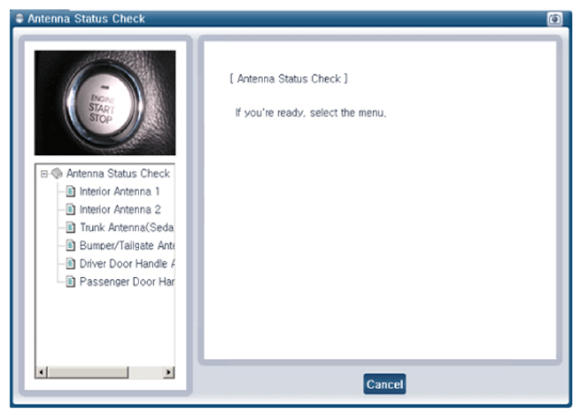

    G12730149Courtesy of HYUNDAI MOTOR AMERICA
  4. Set the smart key near the related antenna and operate it with a GDS.

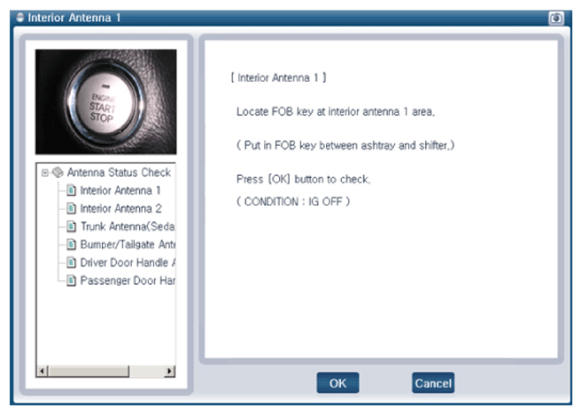

    G12730150Courtesy of HYUNDAI MOTOR AMERICA

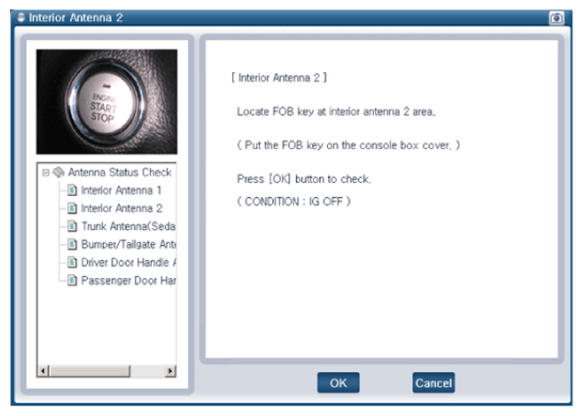

    G12730151Courtesy of HYUNDAI MOTOR AMERICA
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • INTERIOR Antenna 1
    • INTERIOR Antenna 2
    • BUMPER/Trunk Antenna
    • DRV_DR Antenna
    • AST_DR Antenna
