Components Location

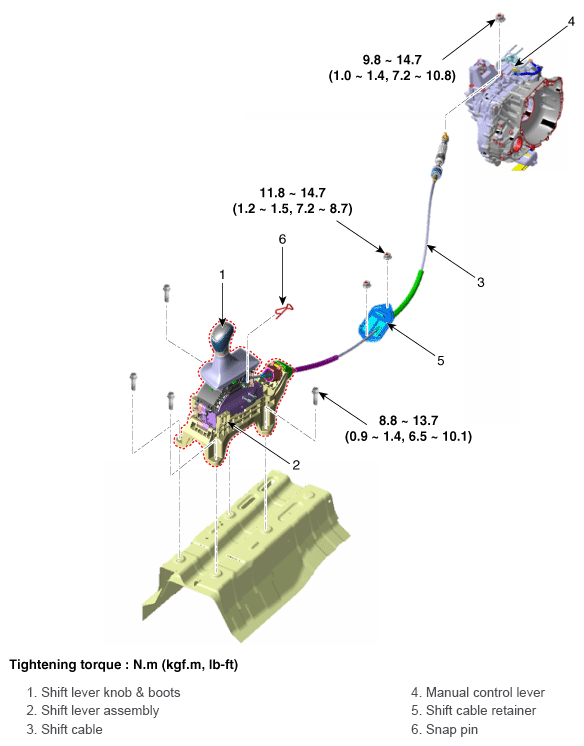

Fig 1: Locating Shift Lever Components With Torque Specifications
G12025434Courtesy of HYUNDAI MOTOR AMERICA
