Inspection Flow Of The Inhibitor Switch

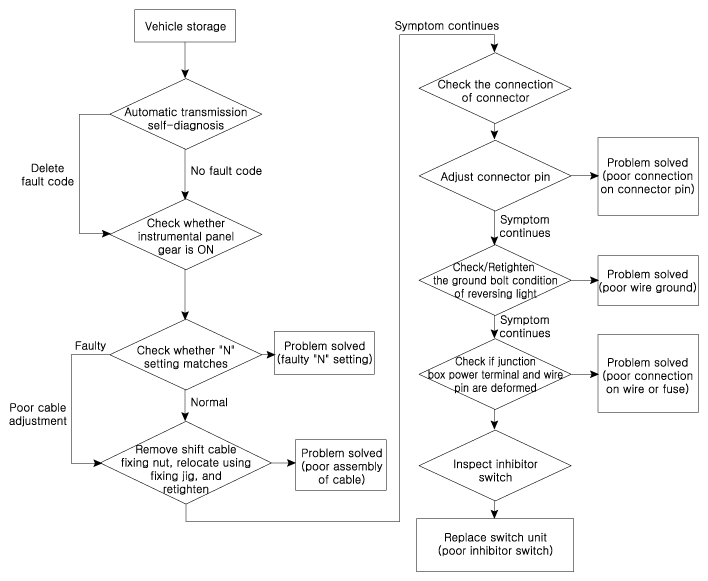

Fig 1: Inhibitor Switch Inspection Flow Chart
G12025425Courtesy of HYUNDAI MOTOR AMERICA
