Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

Using a screwdriver or remover, remove the front door quadrant inner cover (A).

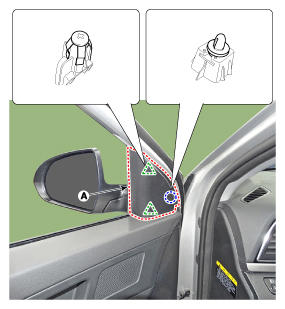

Fig 1: Locating Front Door Quadrant Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.

Fig 2: Locating Lower Part Of Front Door Trim
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door inside handle cage (A).

Fig 3: Locating Front Door Inside Handle Cage
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front door lamp connector (A) and power window switch connector (B).

Fig 4: Locating Front Door Lamp Connector And Power Window Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass is operated properly.
