WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
Remove the connector (A) from the wiper motor.

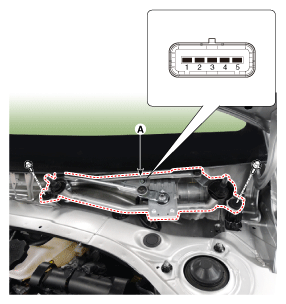

Fig 1: Wiper Motor Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Attach the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1.
No.
Description
1
Ground
2
Parking
3
IGN 2
4
Low Speed
5
High Speed
Fig 2: Attaching Positive (+) Lead From Battery To Terminal 3 And 4, And Negative (-) Lead To Terminal 1 (Low Speed)
Courtesy of HYUNDAI MOTOR AMERICA
Fig 3: Attaching Positive (+) Lead From Battery To Terminal 3 And 5, And Negative (-) Lead To Terminal 1 (High Speed)
