Components Location (1)

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

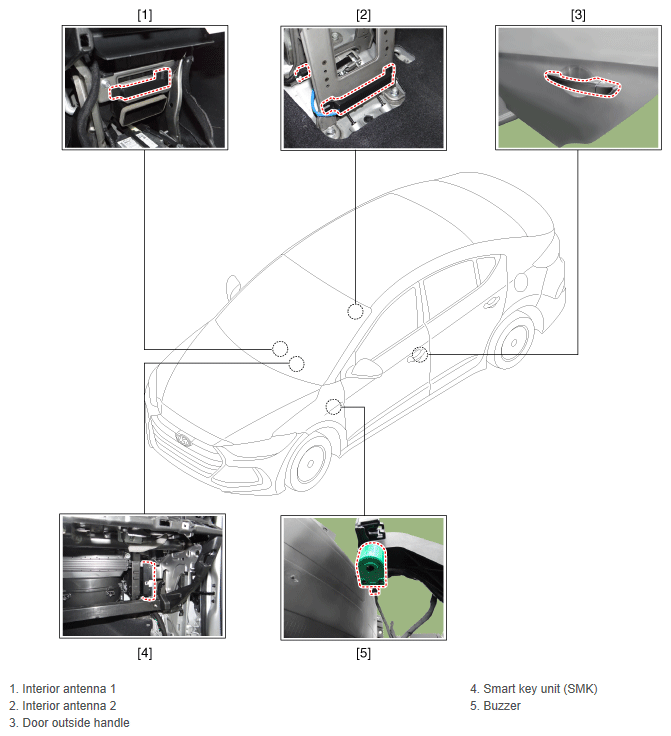

Fig 1: Smart Key System Components (1 Of 2)
G12023338Courtesy of HYUNDAI MOTOR AMERICA
