GDS Data Analysis
- Connect GDS to Data Link Connector (DLC).
- Ignition switch 'ON' and engine running 'ON' condition.
- Turn the steering wheel to the left or right.

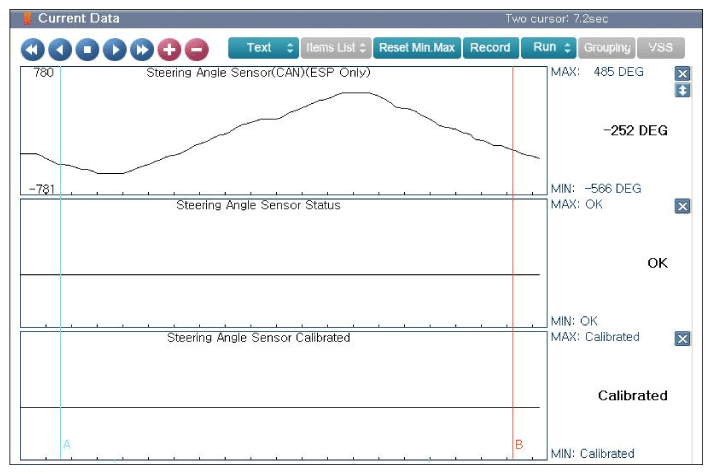

- Monitor the "Steering Angle Sensor" parameters on the "Current Data " menu of the GDS.
- Whenever steering wheel is turned, is the steering sensor's GDS data changed?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to next step.
