Component Location

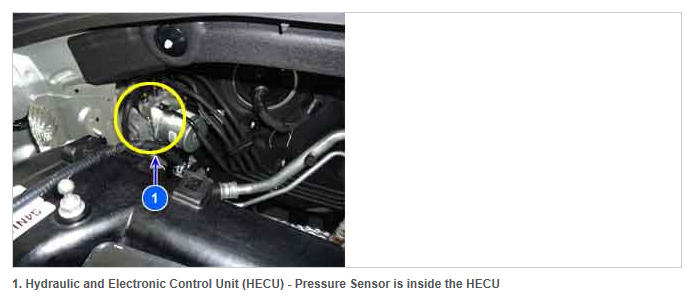

Fig 1: Hydraulic Electronic Control Unit (HECU) - Pressure Sensor is inside the HECU
G12027780Courtesy of HYUNDAI MOTOR AMERICA
