Signal Waveform & Data

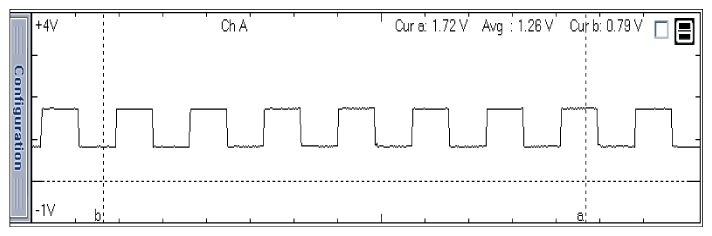

Fig 1: Scantool Display - Normal Waveform Of Wheel Speed Sensor At Driving

Courtesy of HYUNDAI MOTOR AMERICA

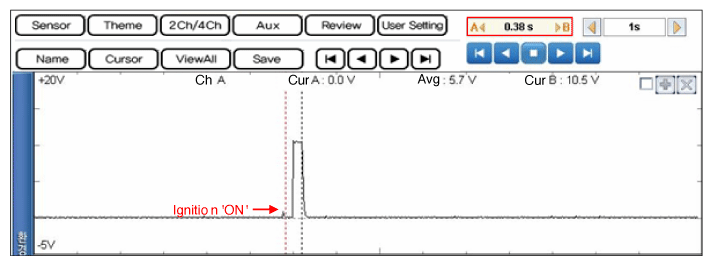

Fig 2: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor At Stall

Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.

-SPAS: Smart Parking Assist System

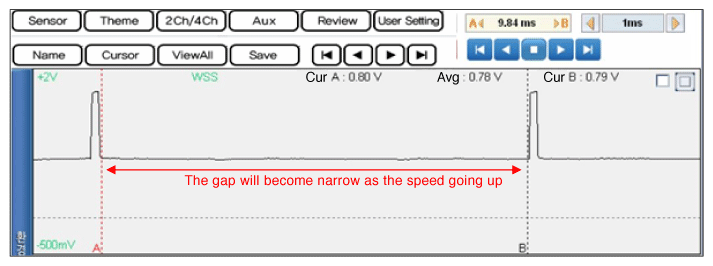

Fig 3: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor With Wheel Rotating

Courtesy of HYUNDAI MOTOR AMERICA

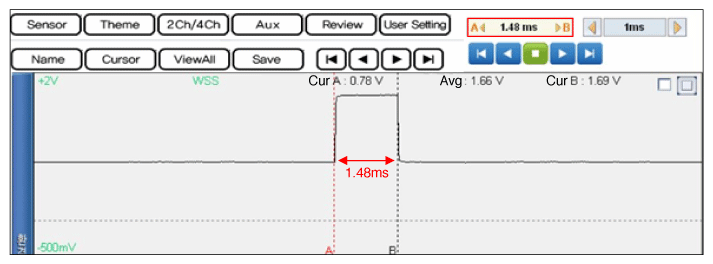

Fig 4: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor At Rear Axle Of SPAS Applied Vehicle

Courtesy of HYUNDAI MOTOR AMERICA

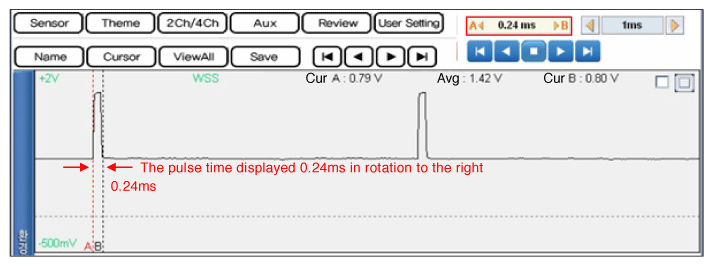

Fig 5: Scantool Display - Normal Waveform Of Smart Type Wheel Speed Sensor With Wheel Rotating

Courtesy of HYUNDAI MOTOR AMERICA

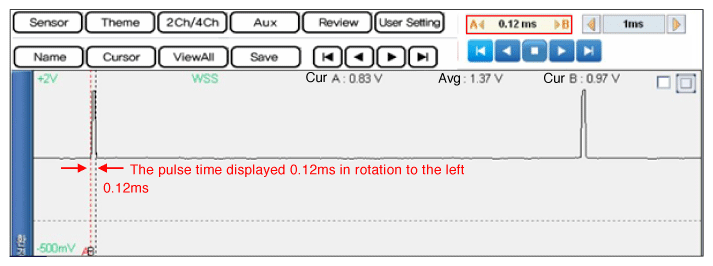

Fig 6: Scantool Display - Normal Waveform At Power Terminal Of Wheel Speed Sensor With Connector Disconnected

Courtesy of HYUNDAI MOTOR AMERICA
