Body Repair

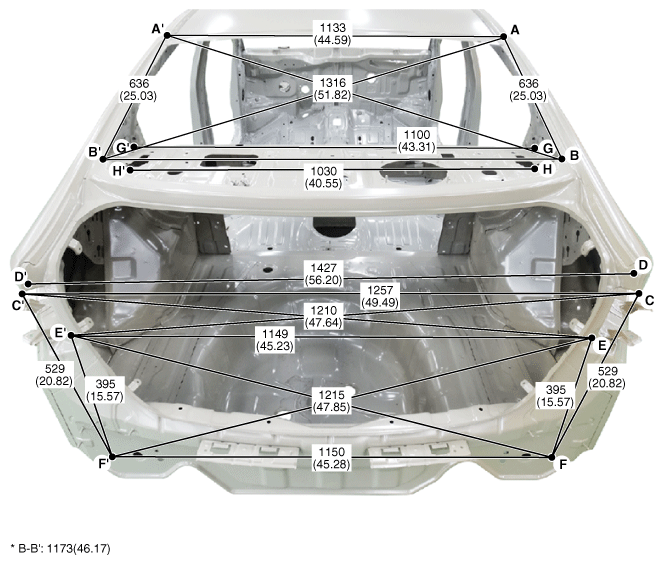

Fig 1: Rear Body Actual-Measurement Dimensions
G12030823Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

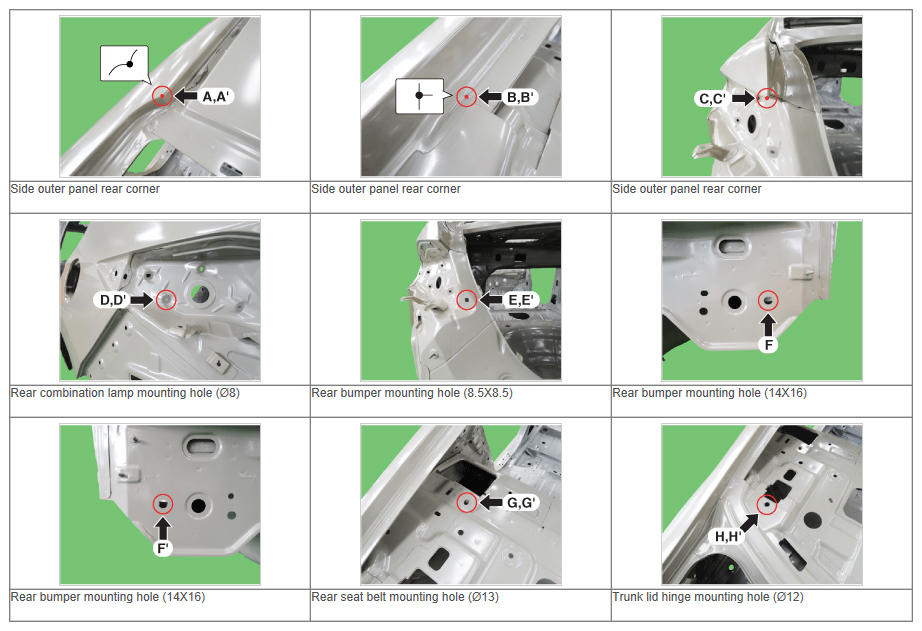

Fig 2: Rear Body Mounting Hole Points Location
G12030824Courtesy of HYUNDAI MOTOR AMERICA
