Front Body D

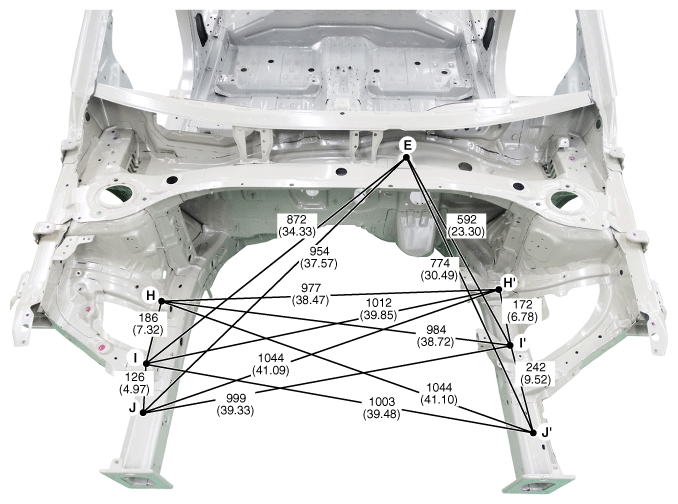

Fig 1: Front Body D Actual-Measurement Dimensions

Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]

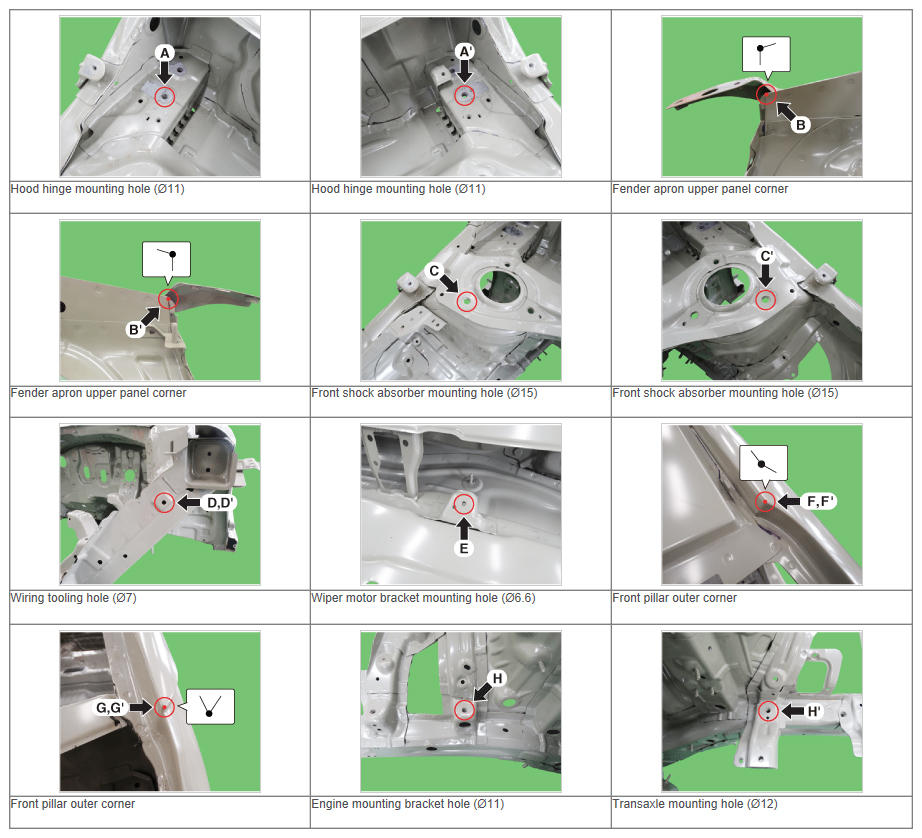

Fig 2: Front Body D Mounting Hole Points Location (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

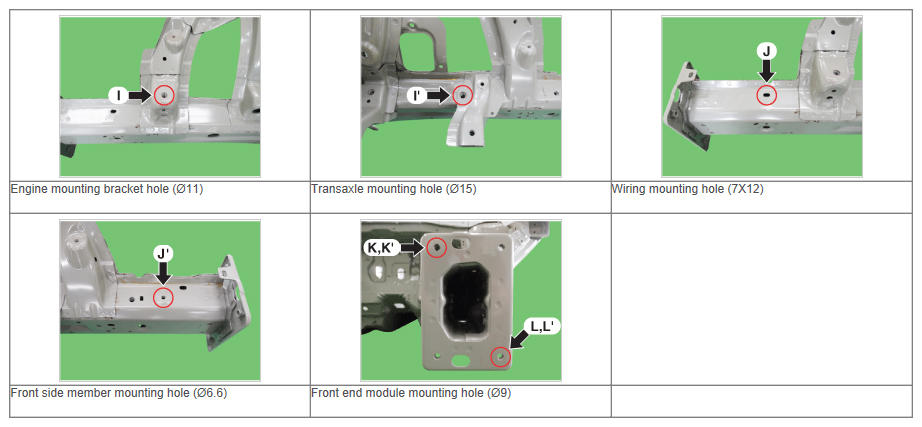

Fig 3: Front Body D Mounting Hole Points Location (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
