Front Body C

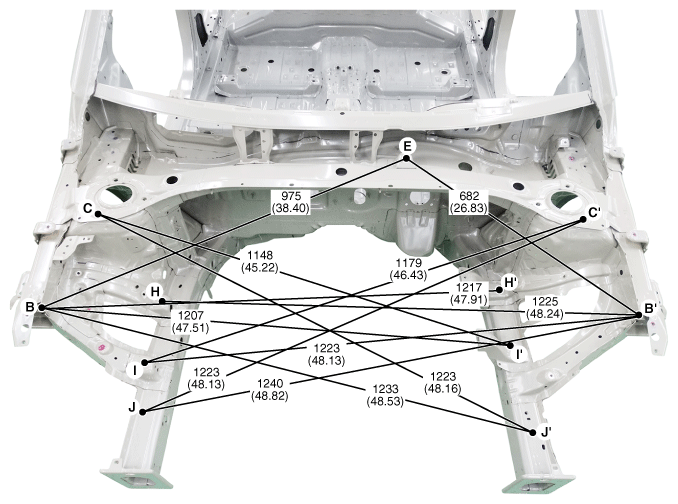

Fig 1: Front Body C Actual-Measurement Dimensions
G12030750Courtesy of HYUNDAI MOTOR AMERICA

* These dimensions indicated in this figure above are actual-measurement dimensions. [Unit: mm (inch)]
