Home >> Hyundai >> 2018 >> Elantra Sport, Standard Trans >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Manual Transaxle Control System - 1.6L >> Shift Lever >> Components And Components Location >> Components

Components And Components Location: Components

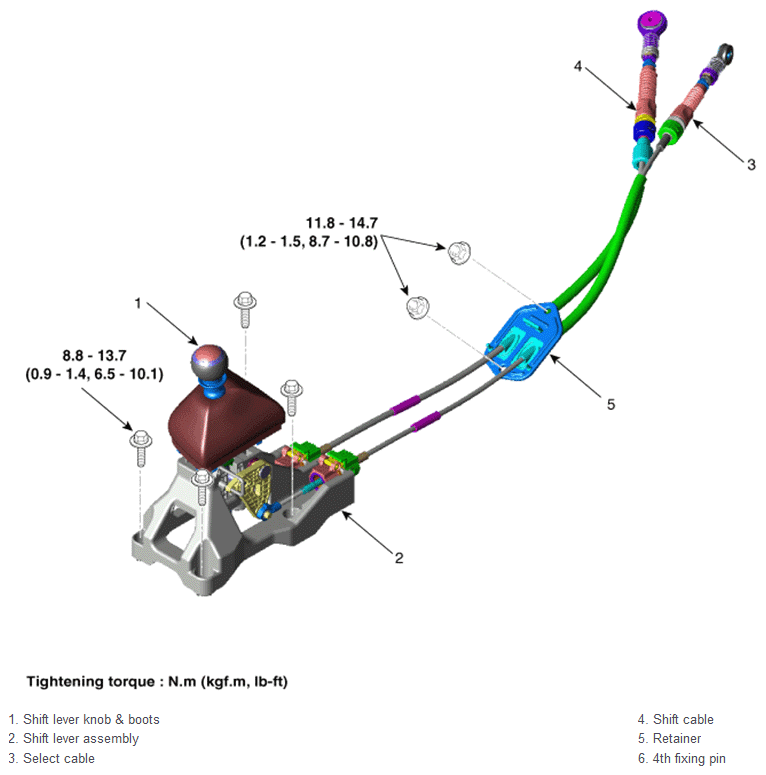

Fig 1: Locating Shift Lever Components With Torque Specifications

G12025699

Courtesy of HYUNDAI MOTOR AMERICA
