Smart Key Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "SMK STATUS INFO".

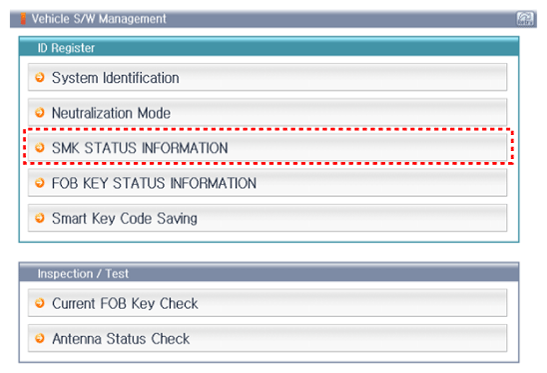

    Fig 1: Scantool Display - Vehicle S/W Management
    G12023375Courtesy of HYUNDAI MOTOR AMERICA

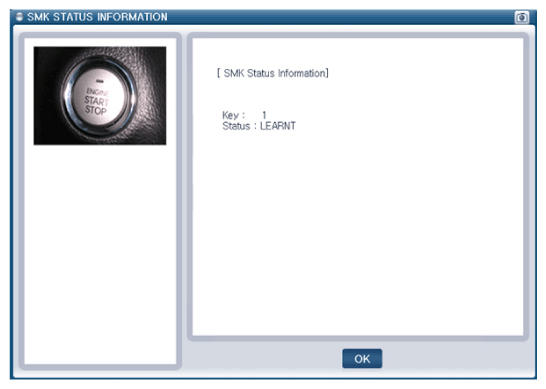

    Fig 2: Scantool Display - SMK Status Information
    G12023376Courtesy of HYUNDAI MOTOR AMERICA
