Gravity Side Impact Sensor

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the door scuff trim.

    (Refer to Body - "INTERIOR TRIM ")

  3. Remove the center pillar trim.

    (Refer to Body - "INTERIOR TRIM ")

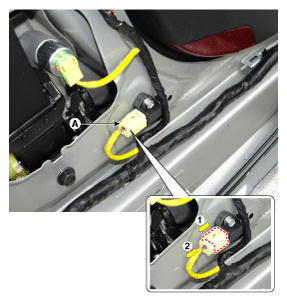

    Fig 1: Disconnecting Gravity Side Impact Sensor Connector
    G12026516Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the gravity side impact sensor connector (A).
  5. Remove the gravity side impact sensor (A) after loosening the gravity side impact sensor mounting bolt.
    Fig 2: Removing Gravity Side Impact Sensor
    G12026517Courtesy of HYUNDAI MOTOR AMERICA
